Warm up ViSaGe

a program in Visual C++/CLR

A program to warm up ViSaGe can be down loaded.

This program is written in Visual C++/CLR and files in the solution are packed into WarmUp.ZIP.

Unpacked files can be opened by Visual C++2008.

Before building the project, VSGV8.LIB should be replaced by that in the appropriate folder in your PC system, if necessary.

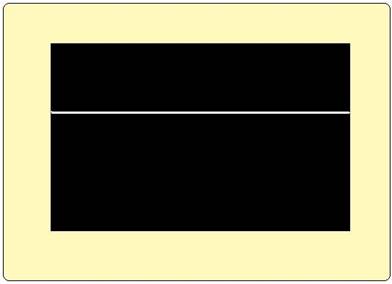

When the program is running, a white line is running on your display.

Part of the program is as follows:

=======================================================================

int h, w, LnPos, IDState;

private: System::Void Form1_Load(System::Object^ sender, System::EventArgs^ e) {

::vsgInit("");

::vsgSetCommand( vsgPALETTECLEAR );

::vsgSetDrawMode( vsgCENTREXY + vsgANTIALIASED );

h = ::vsgGetScreenHeightPixels();

w = ::vsgGetScreenWidthPixels();

::vsgSetDrawPage( vsgVIDEOPAGE, 0, 0 );

::VSGTRIVAL vsgCLWhite, vsgCLBlack;

vsgCLWhite.a = 1.0;

vsgCLWhite.b = 1.0;

vsgCLWhite.c = 1.0;

::vsgPaletteSet( 255, 255, &vsgCLWhite );

vsgCLBlack.a = 0.0;

vsgCLBlack.b = 0.0;

vsgCLBlack.c = 0.0;

::vsgPaletteSet( 1, 1, &vsgCLBlack );

::vsgSetDisplayPage( 0 );

::vsgSetPen1( 255 );

::vsgDrawRect( 0, 0, w, h );

::vsgSetPenSize( 1, 1 );

::vsgSetDrawMode( vsgSOLIDPEN + vsgCENTREXY );

LnPos = 0;

IDState = 0;

timer1->Interval = 20;

timer1->Enabled = true;

}

void Proc0(){

::vsgSetPen1( 1 );

::vsgDrawLine( -w/2 + 1.0, -h/2 + LnPos, w/2, -h/2 + LnPos );

LnPos++;

if (LnPos > h - 1){

LnPos = 0;

IDState = 1;

return;

}

::vsgSetPen1( 255 );

::vsgDrawLine( -w/2 + 1.0, -h/2 + LnPos, w/2, -h/2 + LnPos );

}

void Proc1(){

::vsgSetPen1( 1 );

::vsgDrawLine( -w/2 + 1.0 + LnPos, -h/2, -w/2 + 1.0 + LnPos, h/2 );

LnPos++;

if (LnPos > w - 2){

LnPos = 0;

IDState = 2;

return;

}

::vsgSetPen1( 255 );

::vsgDrawLine( -w/2 + 1.0 + LnPos, -h/2, -w/2 + 1.0 + LnPos, h/2 );

}

void Proc2(){

::vsgSetPen1( 1 );

::vsgDrawLine( w/2 - 1.0, h/2 -1.0 - LnPos, -w/2, h/2 -1.0 - LnPos );

LnPos++;

if (LnPos > h - 1){

LnPos = 0;

IDState = 3;

return;

}

::vsgSetPen1( 255 );

::vsgDrawLine( w/2 - 1.0, h/2 -1.0 - LnPos, -w/2, h/2 -1.0 - LnPos );

}

void Proc3(){

::vsgSetPen1( 1 );

::vsgDrawLine( w/2 - 1.0 - LnPos, -h/2, w/2 - 1.0 - LnPos, h/2 );

LnPos++;

if (LnPos > w - 2){

LnPos = 0;

IDState = 0;

return;

}

::vsgSetPen1( 255 );

::vsgDrawLine( w/2 - 1.0 - LnPos, -h/2, w/2 - 1.0 - LnPos, h/2 );

}

private: System::Void timer1_Tick(System::Object^ sender, System::EventArgs^ e) {

timer1->Enabled = false;

switch (IDState){

case 0 : Proc0(); break;

case 1 : Proc1(); break;

case 2 : Proc2(); break;

case 3 : Proc3(); break;

default : break;

}

timer1->Enabled = true;

}

private: System::Void buttonQuit_Click(System::Object^ sender, System::EventArgs^ e) {

::vsgInit("");

Close();

}

When you write your codes for ViSaGe in Visual C++, IntelliSense would provide dynamic assistance if you use scope resolution operator such as in “::vsg…”.
